G500
G500 is a model designation of Integrated Flight System that combines primary flight instrumentation and navigational information.
Original Manufacturer: Garmin
Status: in production (since 2009)
Application: multiple (Class 1/2 Aircraft, typically piston twins and turbine aircraft with MTOW under 6,000 lbs / 2750 kg)
ATA 100/JACS Code: 34-25
Click here to view official OEM's brochure # M02-10137-00.
Click here to watch short amateur video.
Contents
Part Numbers
Standard G500 LRU Kit consists of the following units:
• 010-00482-50 (Left-Hand PFD) or 010-00482-60 (Right-Hand PFD) GDU 620 Display Unit
• 010-00336-10 GDC74A Air Data System
• 010-00295-10 GRS 77 Attitude & Heading Reference System
• 010-00296-00 GMU 44 Magnetometer
• 011-00978-00 GTP 59 OAT Probe
• 010-00769-44 SD Data Card (Terrain/Obstacle/Airports, SafeTaxi, FliteCharts)
Features
► Display of attitude (pitch and roll), rate of turn, slip/skid, heading, airspeed, altitude, and vertical speed information
► Display of CDI, VDI, Flags along with ARINC 429 roll steering output
► Display of position and ground speed
► Display of stored navigation and map databases
► Control and display of the HSI, RMI, selected heading and selected courses (PFD only)
► Area navigation functions using the determined position/velocity and stored navigation data
► Approach navigation functions and associated databases
► Interfacing with an approved GPS navigator (GPS 400W, GPS 500W, GNS 480, GTN 600/700 Series)
► Interfacing to approved autopilots to provide heading and course datum information, lateral and vertical deviation information, roll steering information, and attitude and air data information
► Display of information obtained from NAV receivers (GNS 430W, GNS 530W, GNS 480, SL30, GTN 600/700 Series)
► Display of information obtained from a traffic system
► Display of information obtained from an ADF receiver
► Interfacing to an external audio system for aural alerts
► Display and control of the GDL 69/GDL 69A
► Display and control of the GWX 68 Weather Radar(enabled with the optional enablement card)
► Display and control ARINC 708 weather radar (enabled with the optional enablement card)
► Output of RS-232 altitude data
► Interfacing with the GAD 43 adapter enables AHRS to drive autopilot systems (optional)
► Interfacing with the GAD 43e adapter (optional) provides the same autopilot compatibilities as the GAD 43, as well as the functionality of Altitude Preselector, Vertical Speed Controller, Dual analog VOR/LOC/GS input, Analog radar altitude input, DME distance input, Marker beacon lamp input and Synchro ADF input (ARINC 407)
► Display of information obtained from a video camera
► Interfacing with the GSR 56 Iridium phone system to provide position reporting, Garmin Flight Data Service (GFDS), and telephone (enabled with the optional enablement card)
► Radar Altitude Display (enabled with optional enablement card)
► Synthetic Vision display on PFD (enabled with optional enablement card)
Specifications

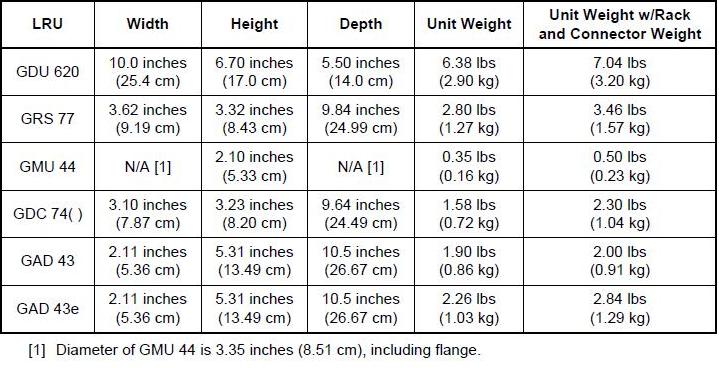

G500 LRU Physical Specifications

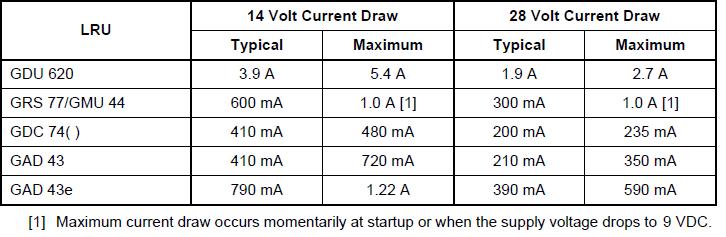

G500 LRU Current Specifications
Limitations:
► The GDC 74A may require a warm-up period of 15 minutes to reach full accuracy (30 minutes if the environmental temperature is less than 0°C)
► Vertical Speed Range (GDC 74A): -20,000 to +20,000 ft/minute
► Airspeed Range (GDC 74A): < 450 Knots (833 km/h)
► Mach Range (GDC 74A): < 1.00 Mach
► Total Air Temperature Range (GDC 74A): -85°C to +85°C
► The GTP 59 OAT probe has no icing protection. If ice accumulates on the GTP 59 OAT probe, its accuracy is unknown. Consequently, air temperature measurements may be incorrect if ice accumulates on the probe.
► Rotation rate (GRS 77 AHRS): ±128° per second (the GRS 77/GMU 44 rotation rate capability is ±200 deg/sec but ARINC 429 angular rate output messages are limited to ±128 deg/sec)
G500 Equipment Environmental Qualification Forms (EQF):
| LRU | EQF Doc. No. |
| GDU 620 | 005-00313-20 |
| GRS 77 | 005-00165-31 |
| GMU 44 | 005-00164-31 |
| GDC 74A | 005-00191-77 |
| GTP 59 | 005-00191-97 |
| GAD 43 | 005-00496-07 |
| GAD 43e | 005-00578-01 |
Approval
Visit separate page of appropriate G500 LRU.
Installation
► 190-01102-06 Installation Manual
Operation
► 190-01102-03 G500 Cockpit Reference Guide (click here to download)
► 190-01102-02 G500 Pilot's Guide (click here to download)
► 190-00355-04 XM Satellite Radio Activation Instructions (click here to download)
Maintenance
The G500 is designed to not require any regular maintenance. Maintenance of all G500 LRUs is “on condition” only.
Per 14 CFR Part 43 Appendix E, paragraph (b)(2), the GDC 74( ) must be checked using a test procedure equivalent to 14 CFR Part 43 Appendix E, paragraph (b)(1) with two exceptions:
• The tests of sub-paragraphs (iv) (Friction) and (vi) (Barometric Scale Error) are not applicable because the digital outputs of the GDC 74( ) are not susceptible to these types of errors.
• Other than for regulatory testing pertaining to Part 43 Appendices E and F, (Pitot/Static leak test as described in Part 91.411) maintenance of the GDC 74( ) is “on condition” only.
